Heat transfer presses are used to apply graphics onto target substrates using high temperature and pressure. They differ in the way they open (manual or automatic, clamshell or swing-away), temperature range, and additional features.
This diversity allows you to choose the perfect heat press machine for your specific needs – for printing on T-shirts, sweatshirts, bags, or other materials.
They can be used for various techniques such as sublimation, flex and flock films, sublimation and solvent-based flex/flock, DTF, or transfers from laser and inkjet printers.

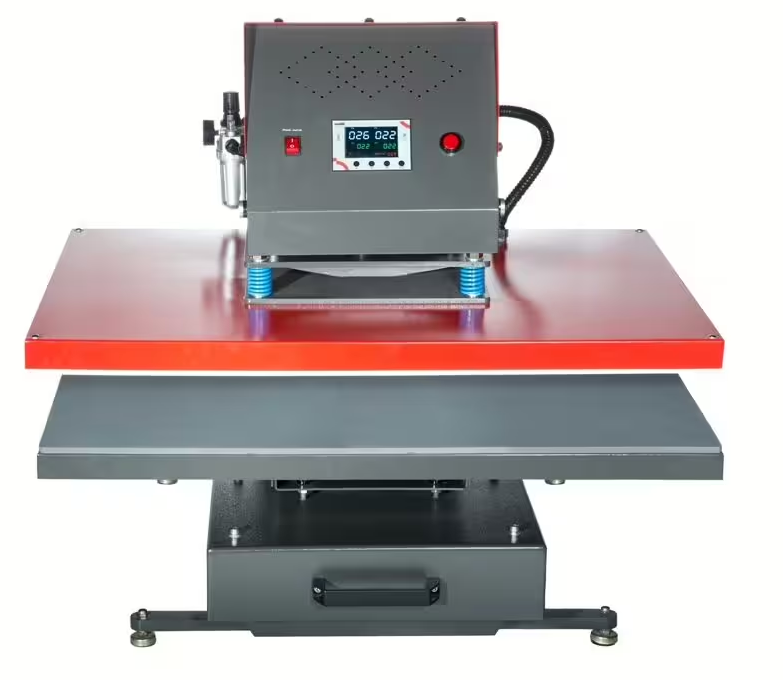

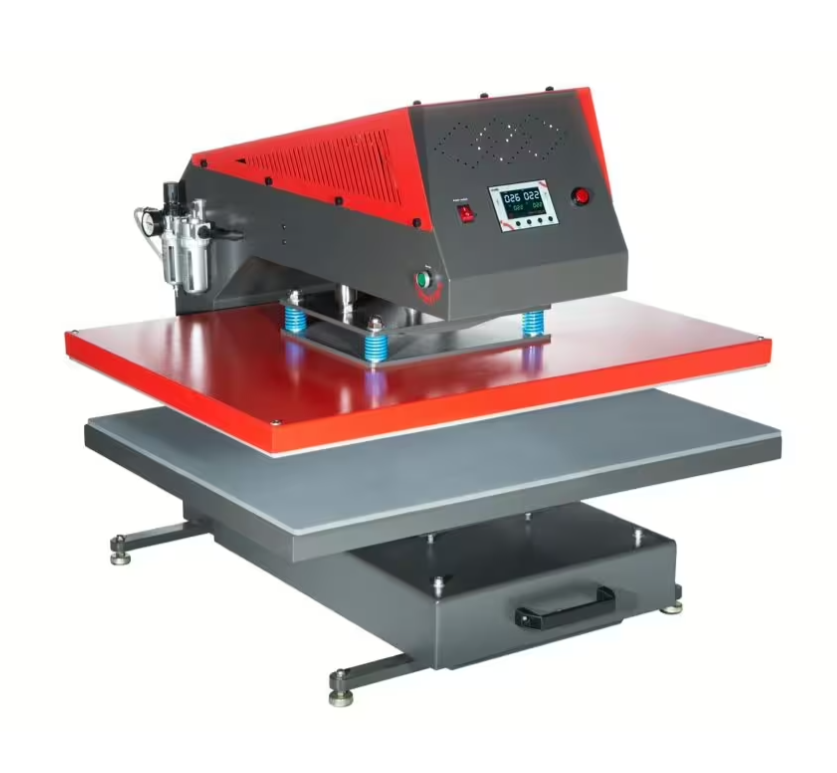

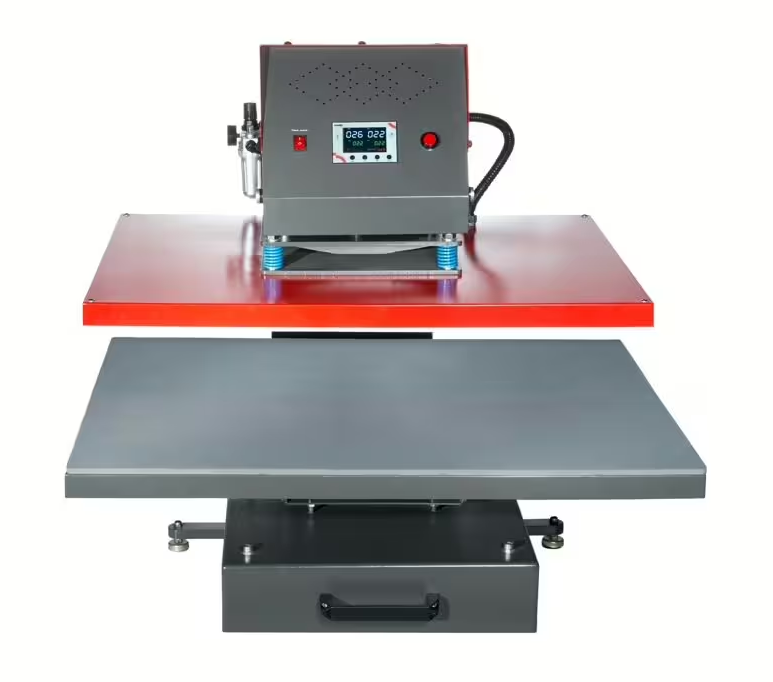

Pneumatic Heat Transfer Press TP10 80 x 100 cm – Automatic Opening, with Sliding Lower Plate
The TP10 heat press operates using compressed air, which facilitates work and ensures consistent printing results.
It is designed for professional, large-format applications and high productivity. The large working area of 80 x 100 cm makes it ideal for printing on items such as flags, bed linen, or bath towels.
The parallel alignment of the heating plate with the lower plate, combined with the vertical movement of the head, ensures even pressure distribution on the transferred materials without shifting them.
The TP10 heat press opens automatically once the set time has elapsed.
The heating process can be interrupted at any time by pressing a single button. Temperature and pressing time are set via a digital controller.
Key features of the press include: a large working area, high pressure, adjustable air pressure, and a sliding lower plate. The press is designed for professional use.
The supplied set includes: heat transfer press, power cable, compressor connection kit
Note: The compressor is not included. Recommended compressor parameters: power from 2 kW, capacity 460 l/min, tank volume 90 L. Typical operating pressure: 3–6 bar.
Warranty: 24 months
Technical Specifications
Dimensions: 105 cm x 90 cm x 145 cm
Plate size: 80 cm x 100 cm
Adjustable pressure
Recommended compressed air quality: according to ISO 8573-1:2010 (1:4:2)
Max. pressure: 150 g/cm
Max. heating temperature: 225°C
Max. pressing time: 999 seconds
Power supply: 3P+N+PE, 5.1 kW
Operating conditions: +5°C to +35°C / 30–70% humidity
Net weight: 320 kg
Gross weight (with packaging): 409 kg
