Heat transfer presses are used to transfer graphics onto the target material using high temperature and pressure. They differ in their opening mechanisms (manual or automatic, clamshell or swing-away), temperature range, and additional features.
This variety of heat presses allows for perfect adjustment of the machine to individual needs — ideal for printing on T-shirts, hoodies, bags, and other substrates.
They can be used with techniques such as sublimation, flex and flock films, sublimation and solvent flex/flock, DTF, as well as laser and inkjet transfer papers.

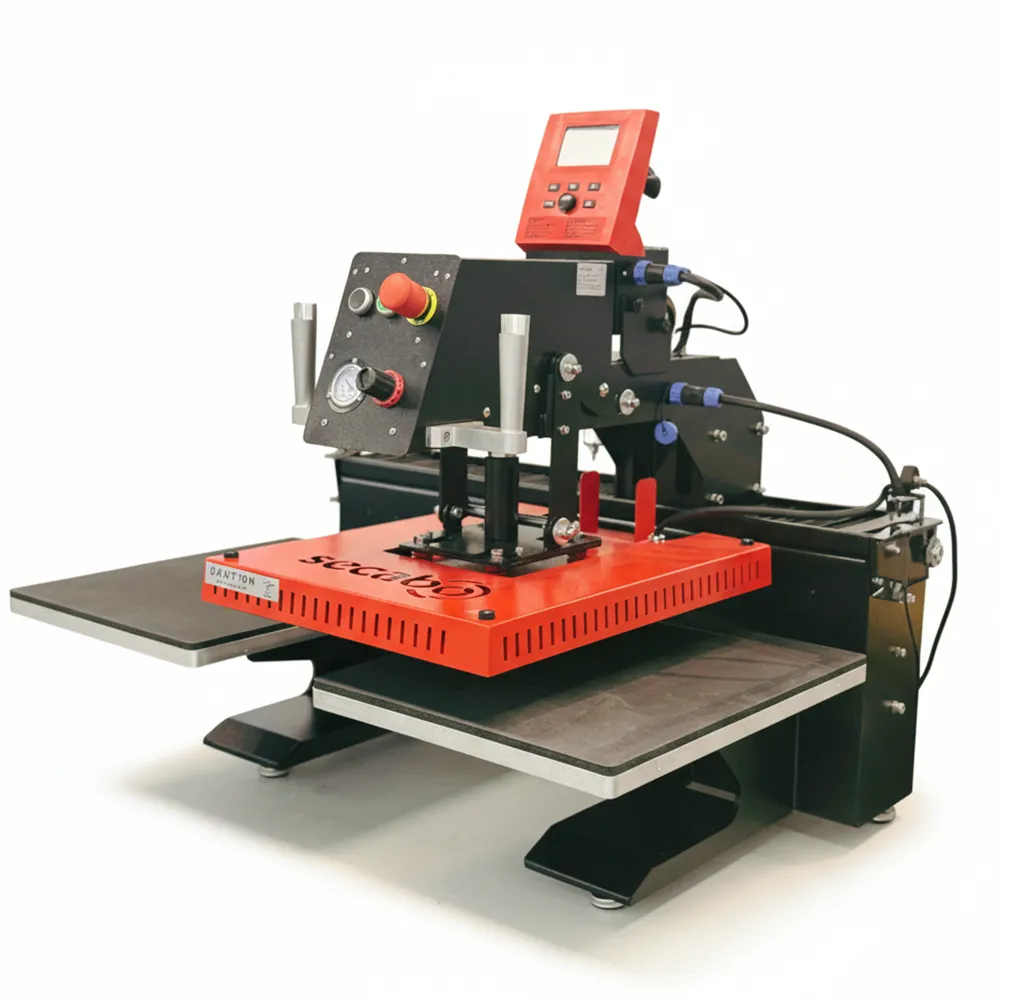

TPD7 SMART Pneumatic Dual-Plate Heat Transfer Press 40 x 50 cm, Automatic Opening with Bluetooth

• The TPD7 SMART heat press is a dual-plate device powered by compressed air, making operation easier while ensuring consistent, repeatable print quality.
  Designed for professional, high-volume production, both 40 x 50 cm plates provide a large working area.
  The dual working surface ensures a smooth production workflow: while one plate is operating, the other can already be prepared for the next transfer.
  The parallel alignment of the heating plate to the lower plates ensures full access to the entire working area.
• The heating head is manually moved horizontally, allowing easy positioning over the selected lower plate.
  The vertical movement of the head guarantees uniform pressure on the transferred materials without any shifting.
• The TPD7 press opens automatically once the preset time elapses. The heating process can be interrupted at any time by pressing a single button.
  Temperature and pressing time are adjusted using a digital controller.

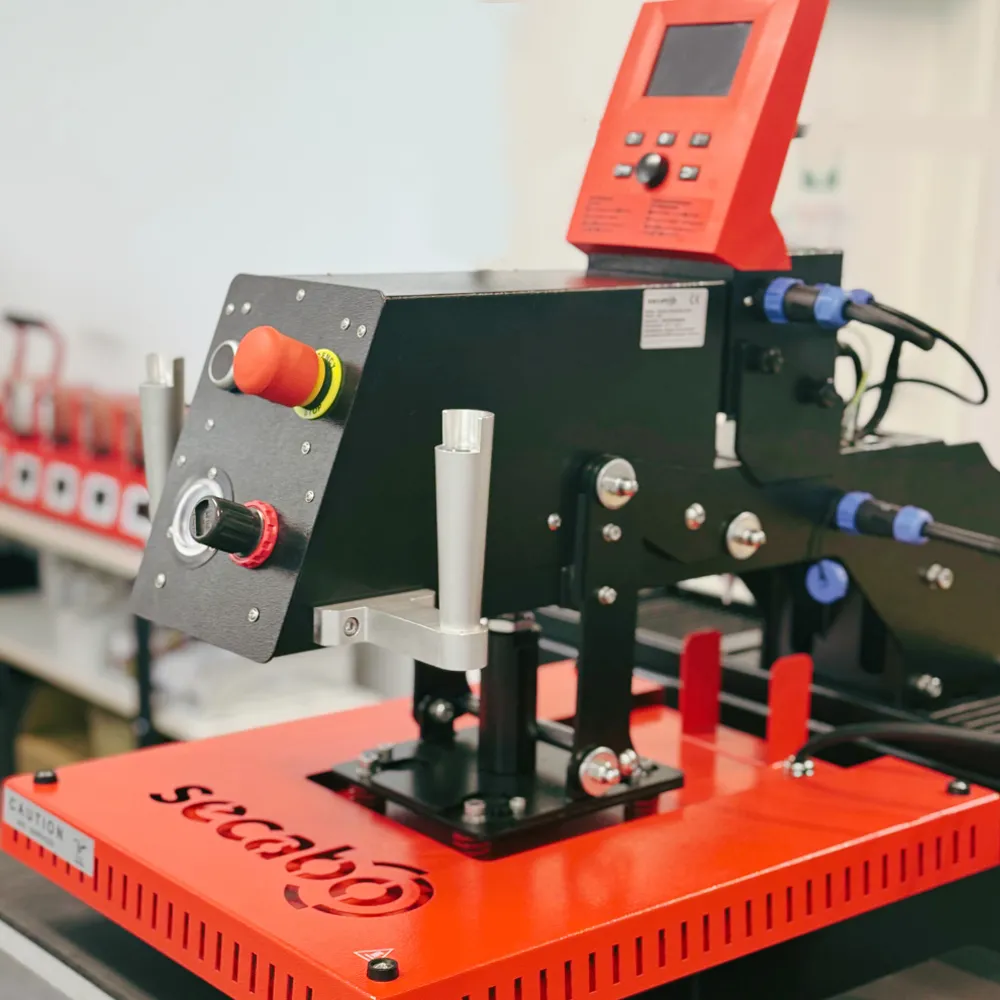

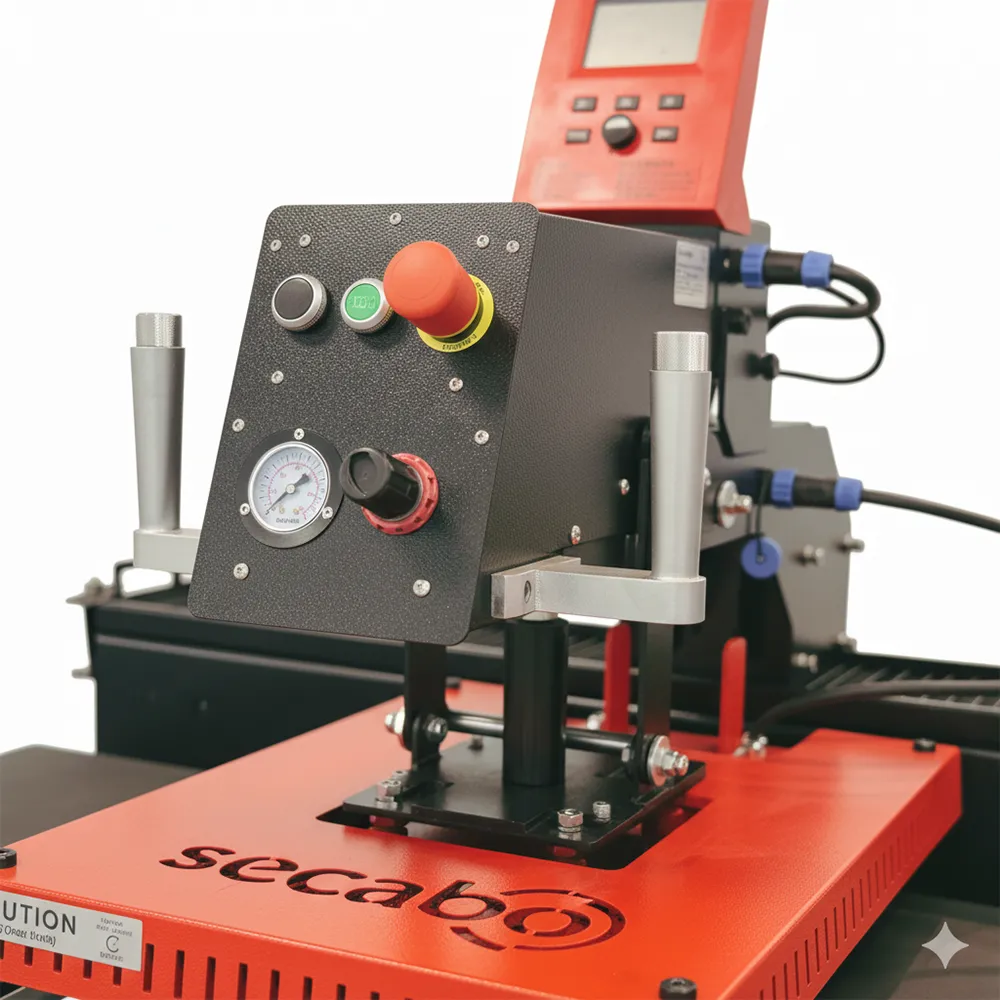

• The TPD7 SMART features a fully modular design consisting of: a control head with pneumatic heating plate, lower plates, base, and power cable.
  All modules can be easily detached and replaced in just a few steps, allowing flexible expansion of the press depending on production needs.
  Optional interchangeable plates of different sizes are available.
• Control is managed via an intelligent controller paired with the Secabo Smart App, operated through Bluetooth.
  This enables digital management of temperature, time, and pressure, as well as saving recurring settings — optimizing workflow and minimizing possible errors.
• Warranty: 24 months
• Included in the set: heat transfer press, power cable, compressor connection kit.
•  Note: The compressor is not included.  Recommended compressor parameters:  Power: from 2 kW, Capacity: 460 l/min,  Tank volume: 90 l, Typical operating pressure: 3–6 bar

Technical Specifications

• Plate size: 2 × 40 cm × 50 cm

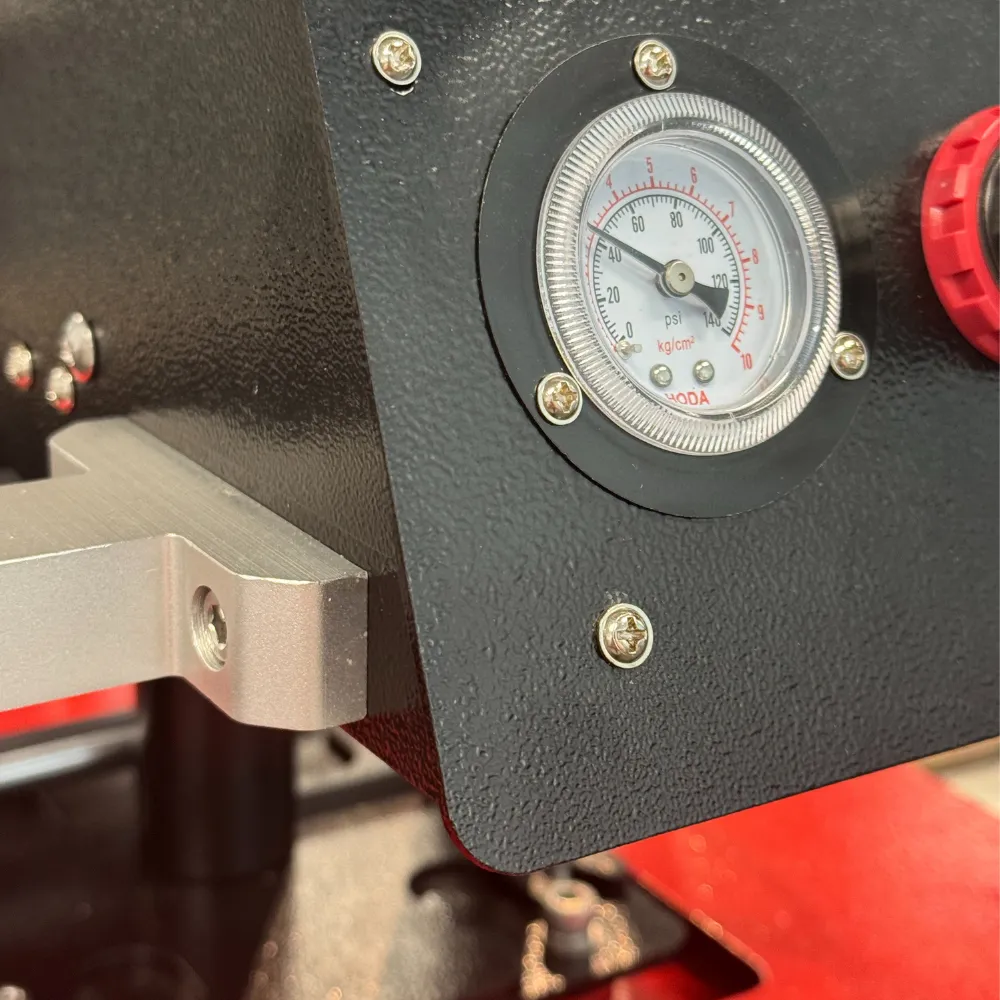

• Pressure adjustment

• Recommended compressed air quality: ISO 8573-1:2010 (1:4:2)

• Max. pressure: 350 g/cm

• Max. heating temperature: 225 °C

• Max. pressing time: 999 seconds

• Voltage/Power: 230 V / 50–60 Hz / 1.8 kW

• Operating conditions: +5 °C to +35 °C / 30–70% humidity

• Net weight: 100 kg

• Shipping weight: 180 kg
