DM3 35 cm DTF printer for direct printing - starter kit

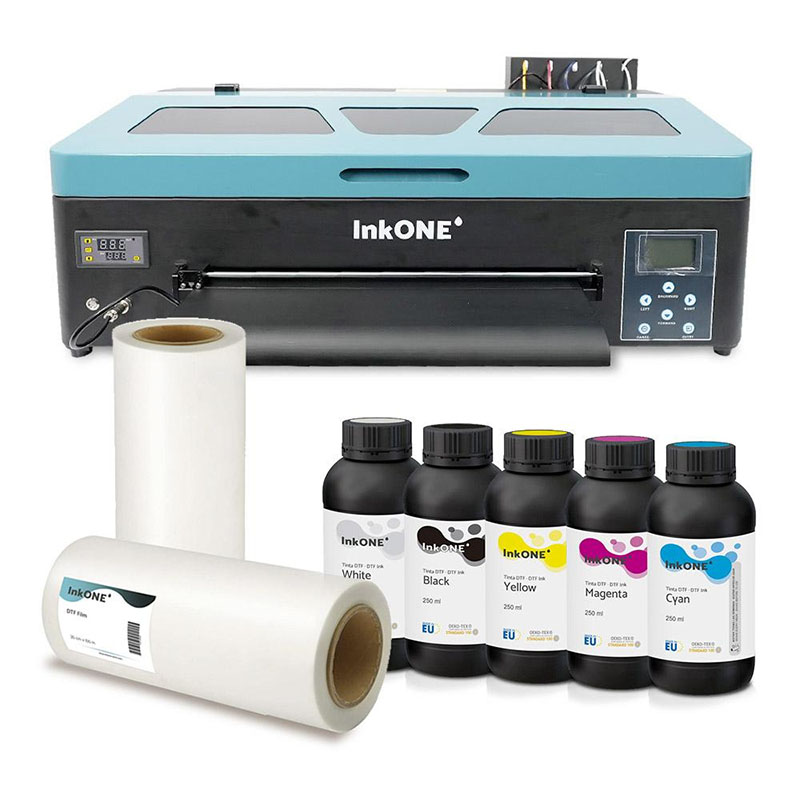

The InkONE DM3 printer starter kit includes:
- InkONE DM34 DTF printer with dual Epson i1600 head
- DTF Oven InkOne H1 (A3 Plus)
- DTF inks - 5 bottles per 1000 ml (the set contains one bottle of cyan, magenta, yellow, black and white inks)
- DTF film in roll 35 cm x 50 m
- DTF hot melt powder- 1 kg
- RIP software
- Network cable
- 220V 16A power cable, 3 meters long
- Accessories: syringe, ink supply tubes, a set of dampers, gummed tape, residual ink bottle, residual ink tank

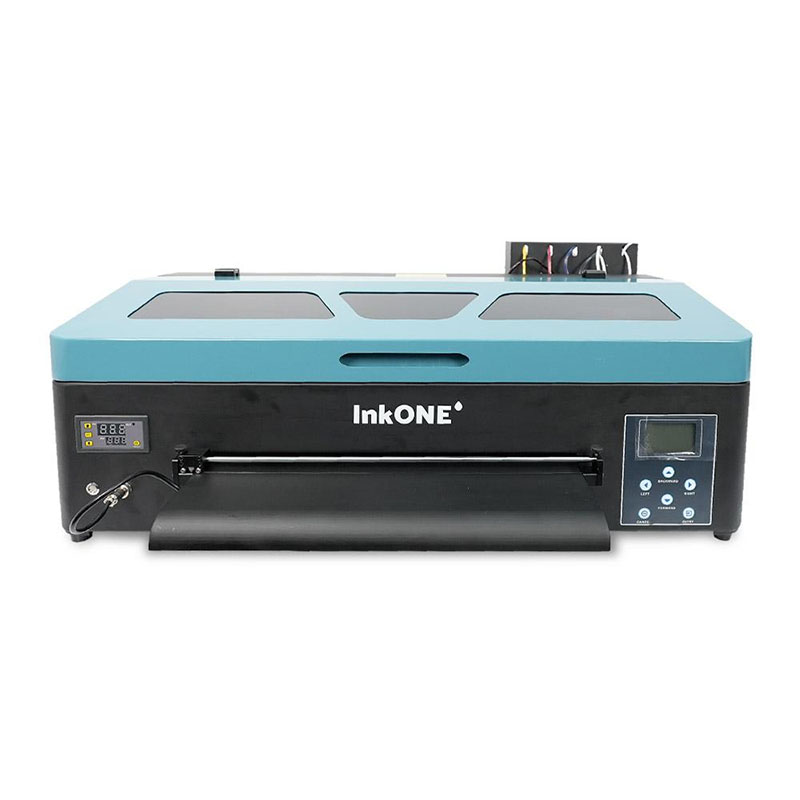

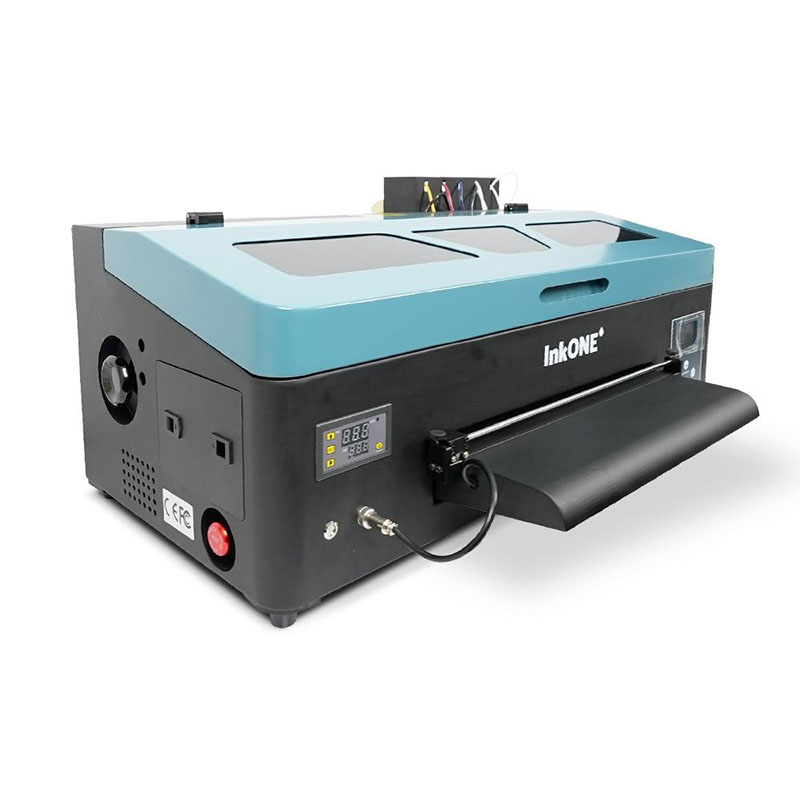

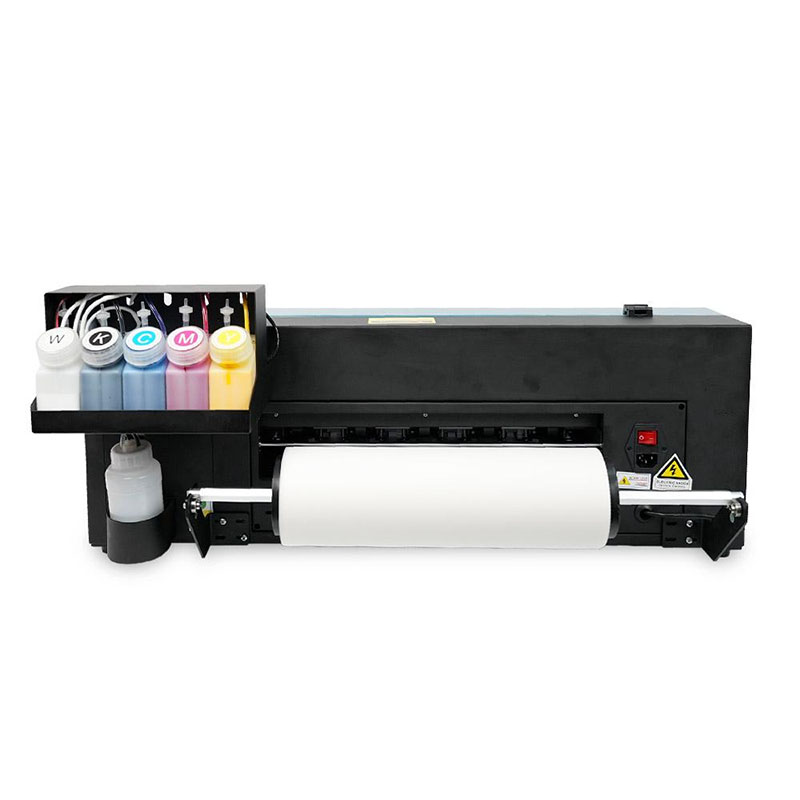

DTF Printer InkOne DM3 PRINTER TECHNICAL SPECIFICATIONS
- Printer dimensions: 80 x 64 x 34 cm
- Printer dimensions package: 84 x 110 x 95 cm
- Printer weight: 30 kg
- Printer weight package: 40 kg
- Interface: Ethernet Gigabyte
- Colours: CMYK+W
- Ink consumption: 10ml/m2
- Ink technology: water-based pigment ink
- Ink Supply: Ink Tank System

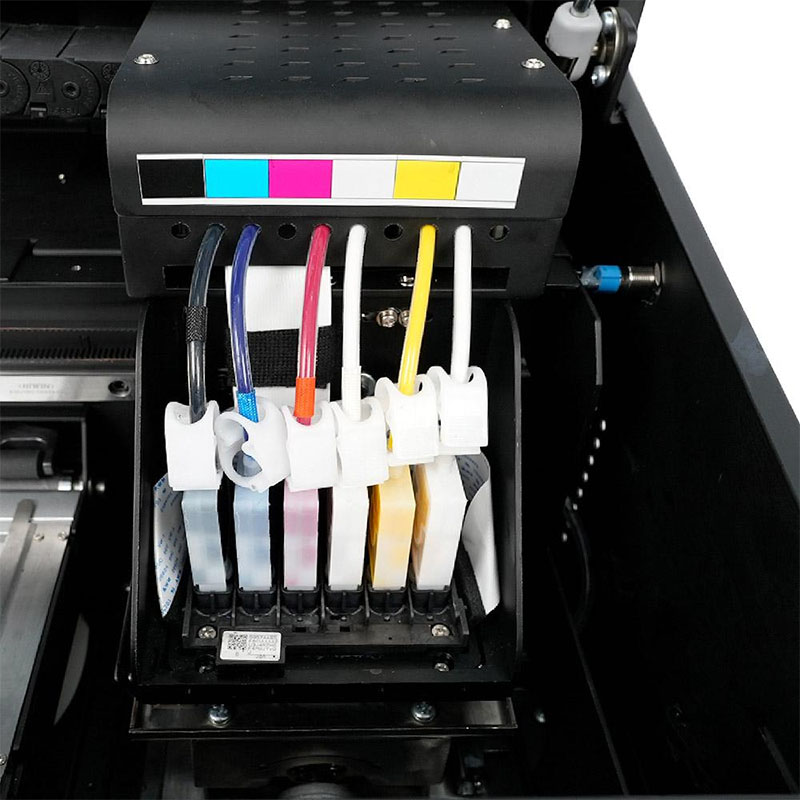

- Circulating System: the ink recirculation system, white ink stirrer, and additional filtering in the dampers prevent sediment formation and blockages
- Print head technology: Epson XP600
- Printing speed: up to up to 8 pass 5 ML/h (meters linear per hour)

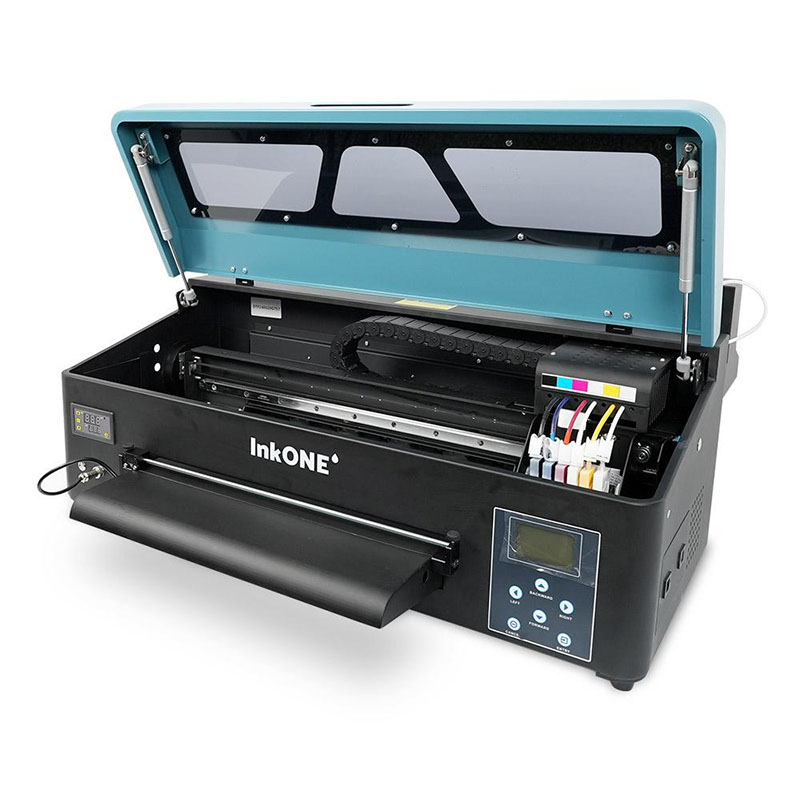

- Compact and optimized design: fits in all workspaces and provides easy access to the interior for simplified repair and maintenance
- Top window and interior light: allows real-time verification of print quality

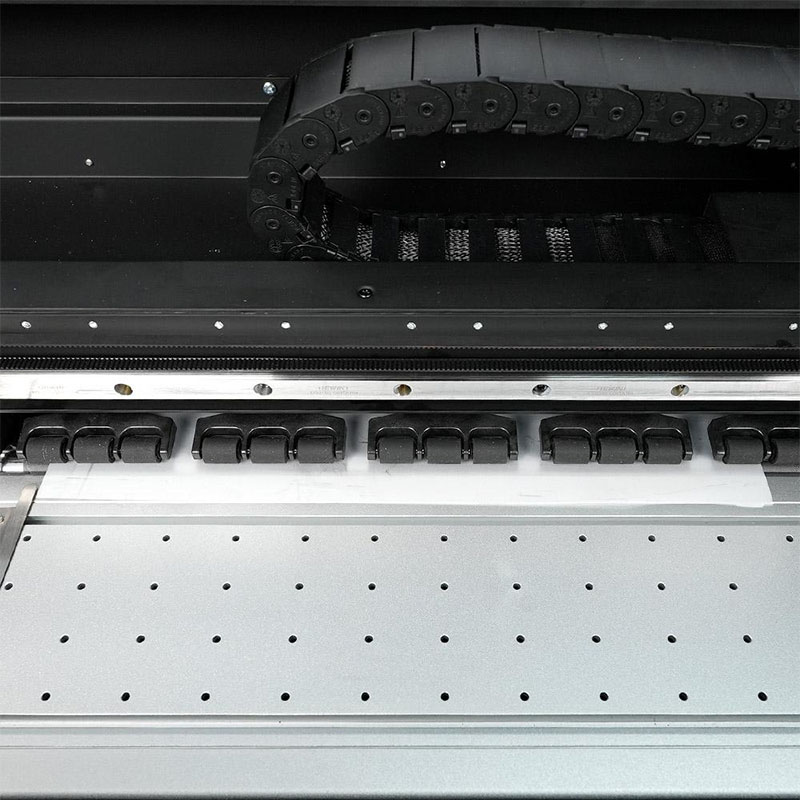

- Built-in vacuum platform: the film is absorbed flat, maintaining height during printing
- Heated flat output tray: prevents contact with the print head and improves ink fixation, avoiding unwanted dispersions or mixtures
- Manual Cutter: includes a cutter that ensures a straight edge from start to finish
- Integrated digital display allows for easy monitoring of multiple parameters
- Warranty: 12 months (except for parts that carry ink, such as the print head, capping, wiper, damper, or the hose system). The print head is a consumable and is not covered by warranty.
The DTF printer should be placed in a place where the temperature is between 18°C and 28°C and humidity is between 45% and 60%.

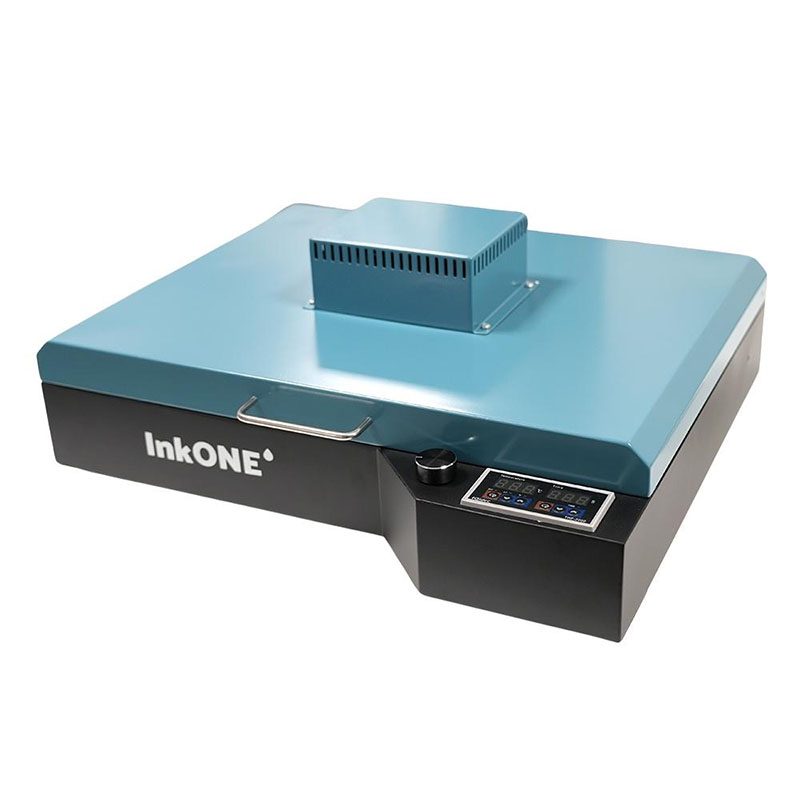

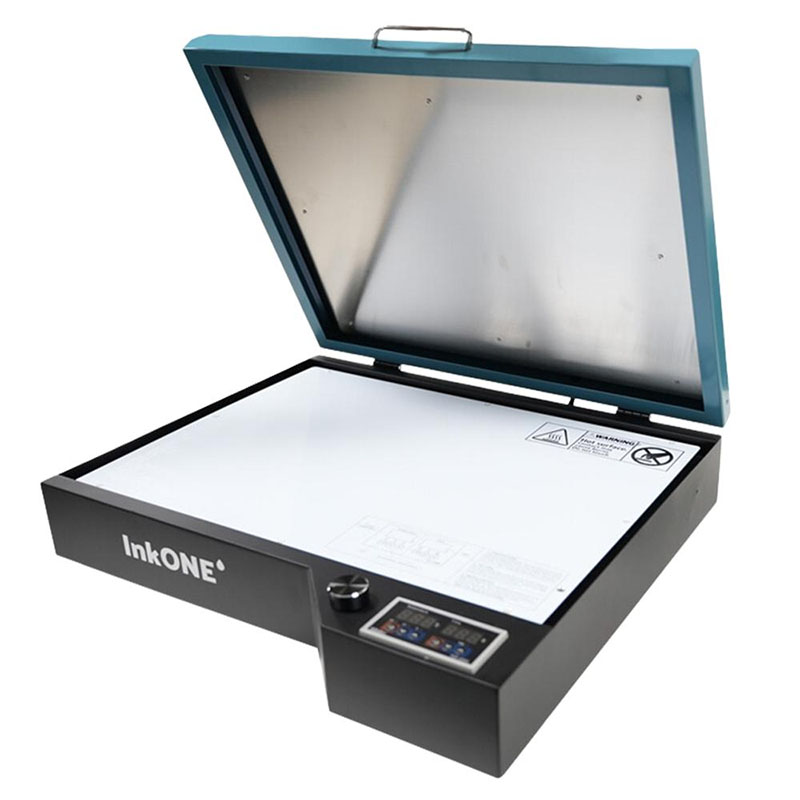

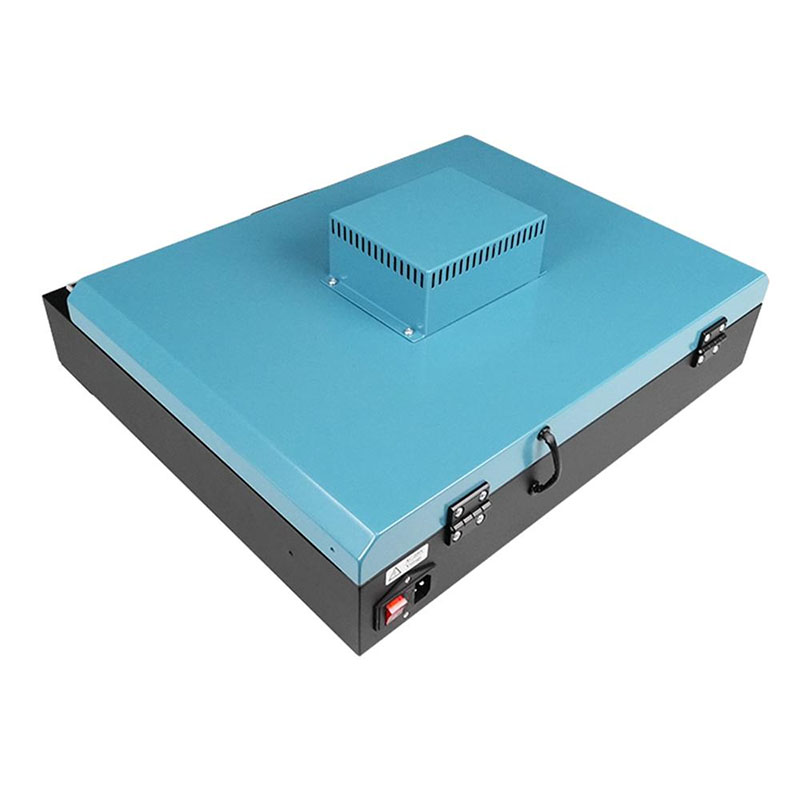

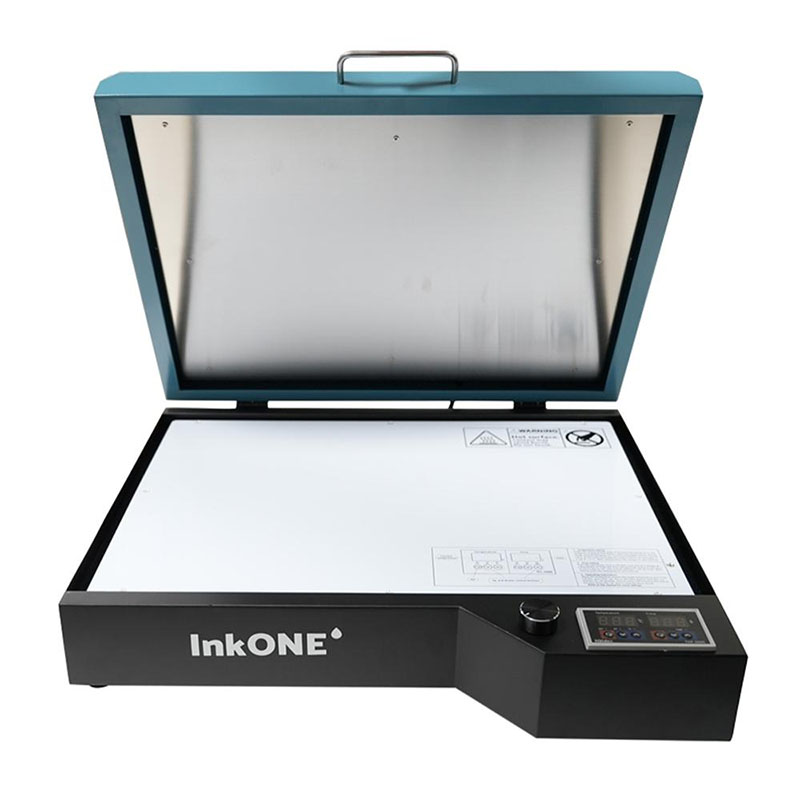

DTF OVEN TECHNICAL SPECIFICATIONS
- Oven dimensions: 530 x 470 x 150 mm
- Weight: 14 kg
- Maximum Film Size: 35 x 50 cm
- Rated voltage: 220V

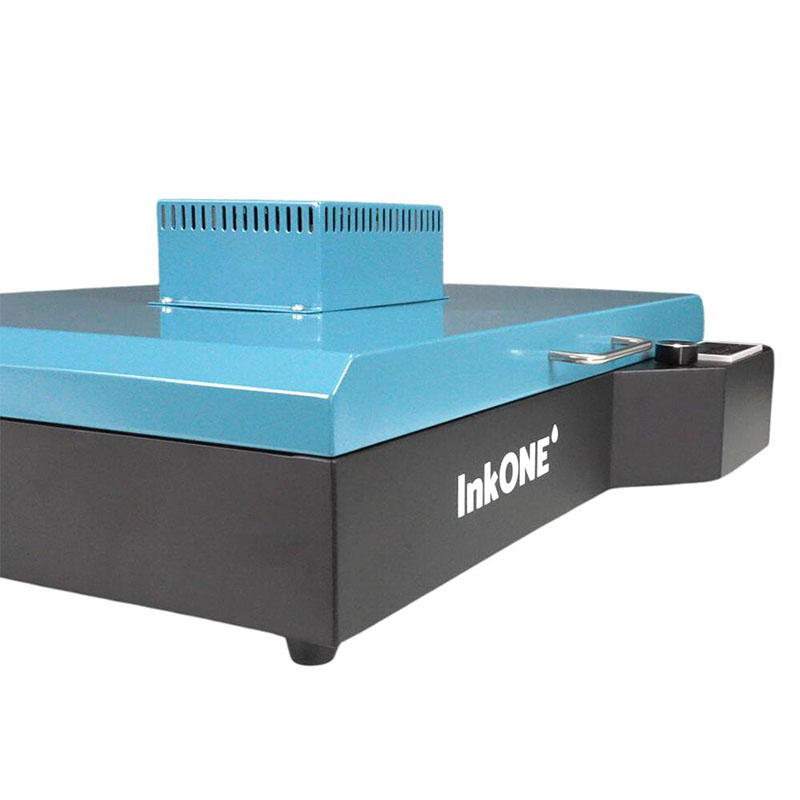

- Includes air purifier on top

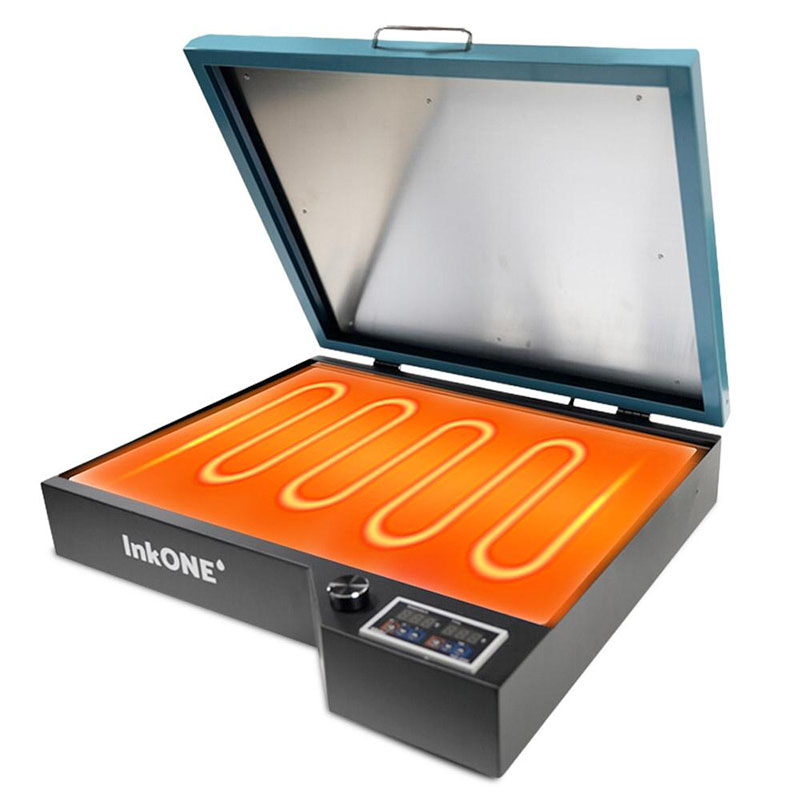

- Heating pipe: ensures perfect heat performance
- Precise digital control panel: regulates the oven temperature and curing time control
- Temperature Range: 0 - 130°C
- Timer: 0-999 sec
- Ventilation grilles: for the electronic components
- Recommended time: 100 seconds (adjustable)
This DTF starter kit is ideal for small-scale production. The DTF Dryer InkOne H1 (A3 Plus) is designed to cure DTF films up to DIN A3+ size. It is the ideal complement for most DTF printers.
