UV Laser Engraver 5W

• non-ferrous metals, precious metals, aluminum, stainless steel, and other metal alloys


Technical specification:

• Input Voltage: 230 VAC, 50-60Hz
• Laser Source Power: 50W
• Laser type: Nd YAG (FIBER), RAYCUS RFL
• Marking Area: 150x150 mm
• Minimum Line Width: 0,01 mm
• Marking Speed (Linear): <5000 mm/s
• Beam Quality (M): <1,6
• Minimum Character Size: 0,15 mm
• Pulse Repetition Frequency: 40-60 kHz
• Laser Wavelength: 1064 nm
• Cooling: powietrze
• Supported File Formats: AI, PLT, DXF, DST, SVG, NC, G, GBR, BMP, JPG, JPEG,GIF,TGA, PNG, TIF, TIFF
• Software: EZ Cad [EN], Windows 10 [EN]
• Laser Lifespan: 100.000 godzin

Included in the Set:

Optional Accessories Available:

• Z-Axis Cylindrical Rotary Attachment

• Z-Axis Rotary Table

• Automatic Pen Feeder

• Lenses of Various Sizes for Changing Working Areas

• 100W/200W Fume Extractor

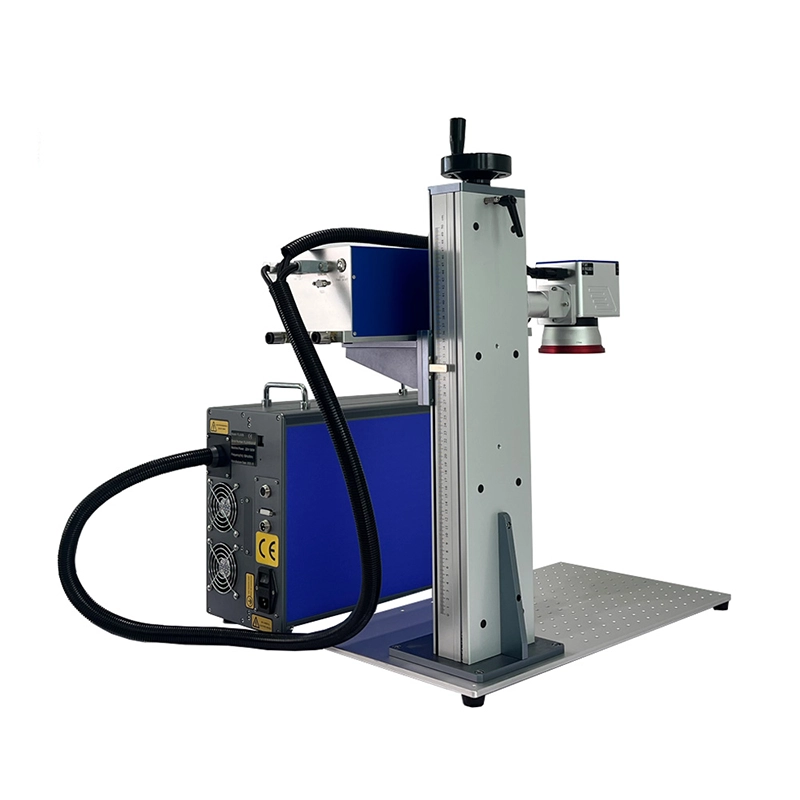

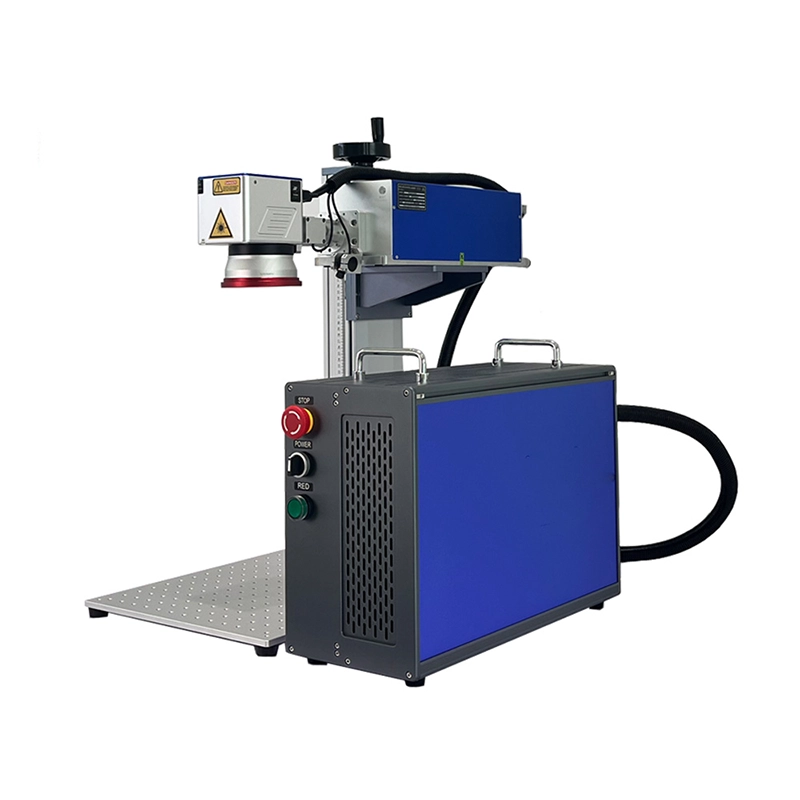

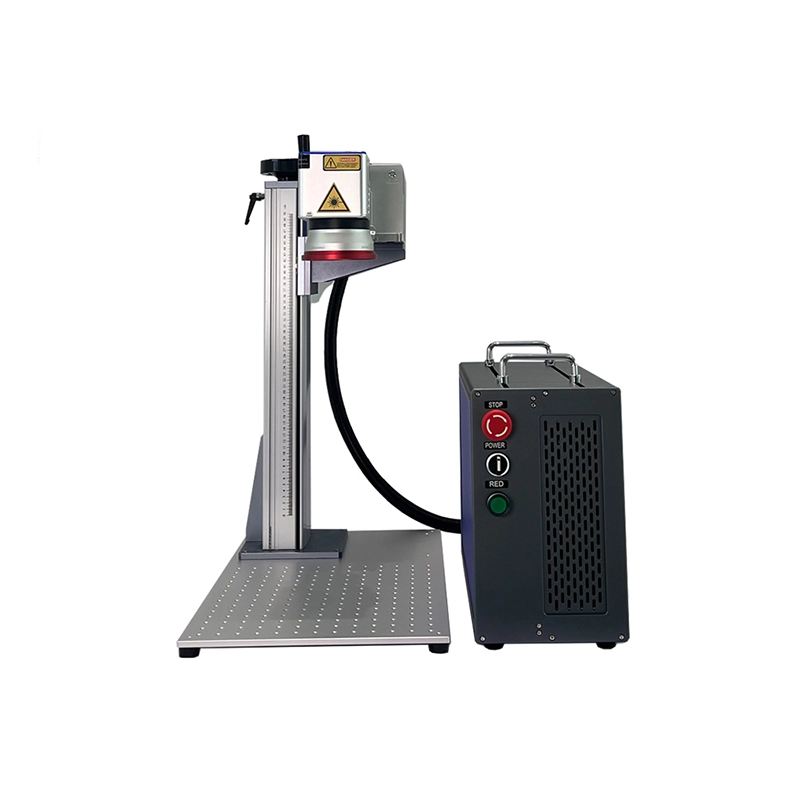

Product Description – Laser Engraving Device

• The engraving machine allows for marking promotional items with text, graphics, or barcodes, meeting most customer requirements for marking and personalizing various objects such as keychains, nameplates, pens, medals and trophies, metal mugs and bottles.
• The engraver is well-suited for use in electronics (marking PCB boards, electronic enclosures), jewelry (engraving on rings, bracelets, and other jewelry), as well as engraving on medical and pharmaceutical equipment, and many other applications.
• The engraver comes with the dedicated EZCAD2 software, which is highly intuitive and easy to use. It allows you to create your own vector graphics projects, as well as import and engrave raster images in .jpg format.
• This professional laser engraving machine is air-cooled and can be operated from any computer via a USB connection.
• The engraver's design allows for easy transport of the device and operation even on a desk.
• The power used in the marker enables the use of different lens sizes without any loss of laser power.

Warranty:

• 3 years for the entire device
• 1 year for the laser sourcve

Training and Support:

After purchase, free on-site training is available (training 130 km from Warsaw airport/ Poland).
After-sales technical support is provided throughout the entire warranty period.
